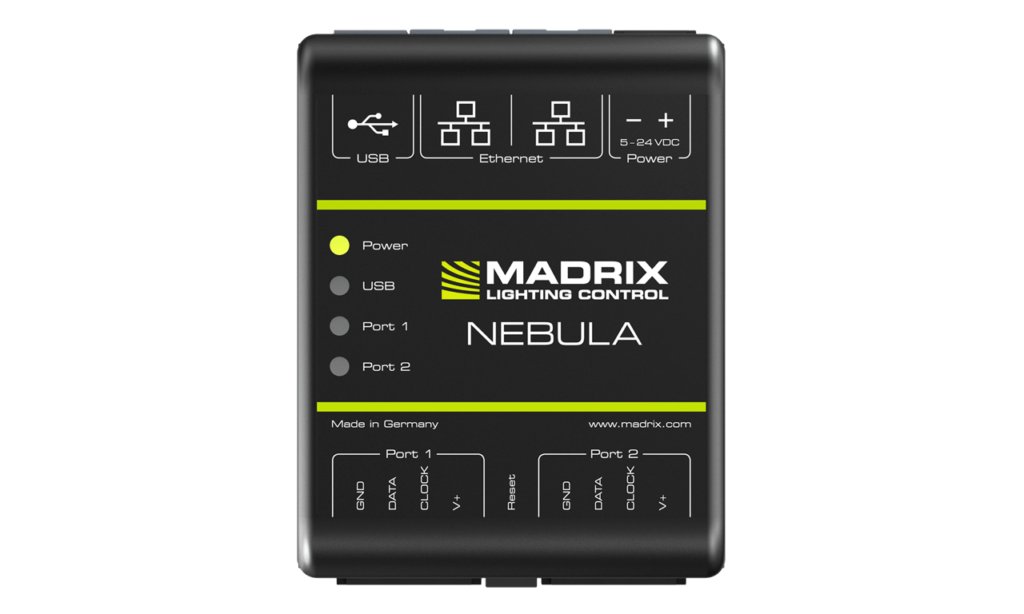

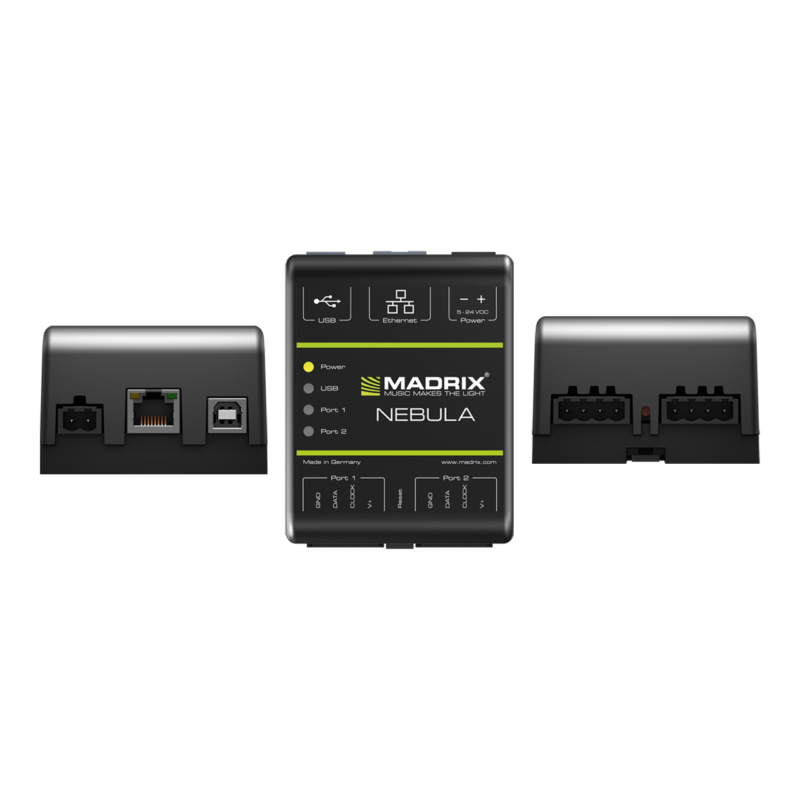

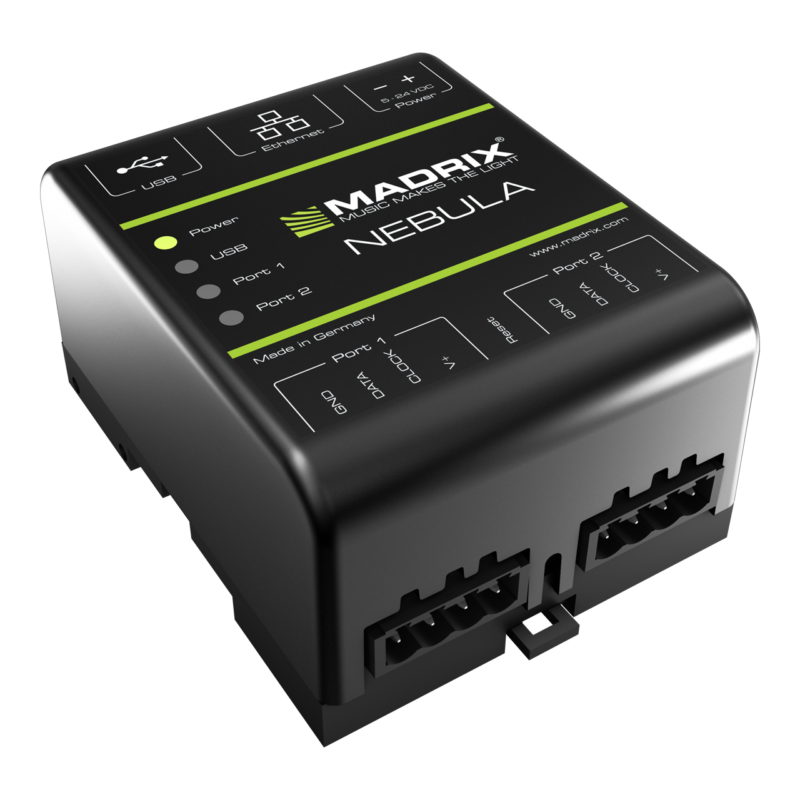

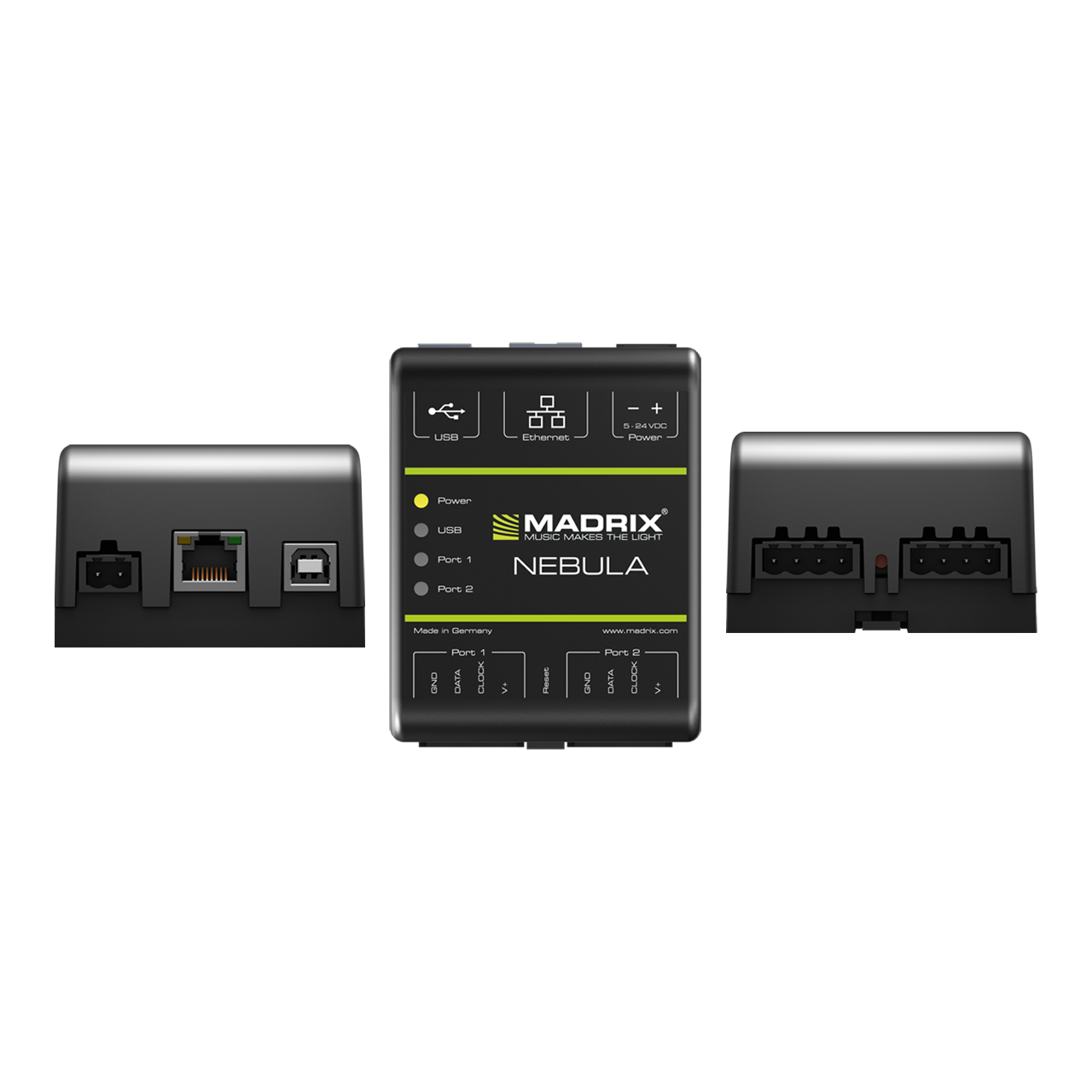

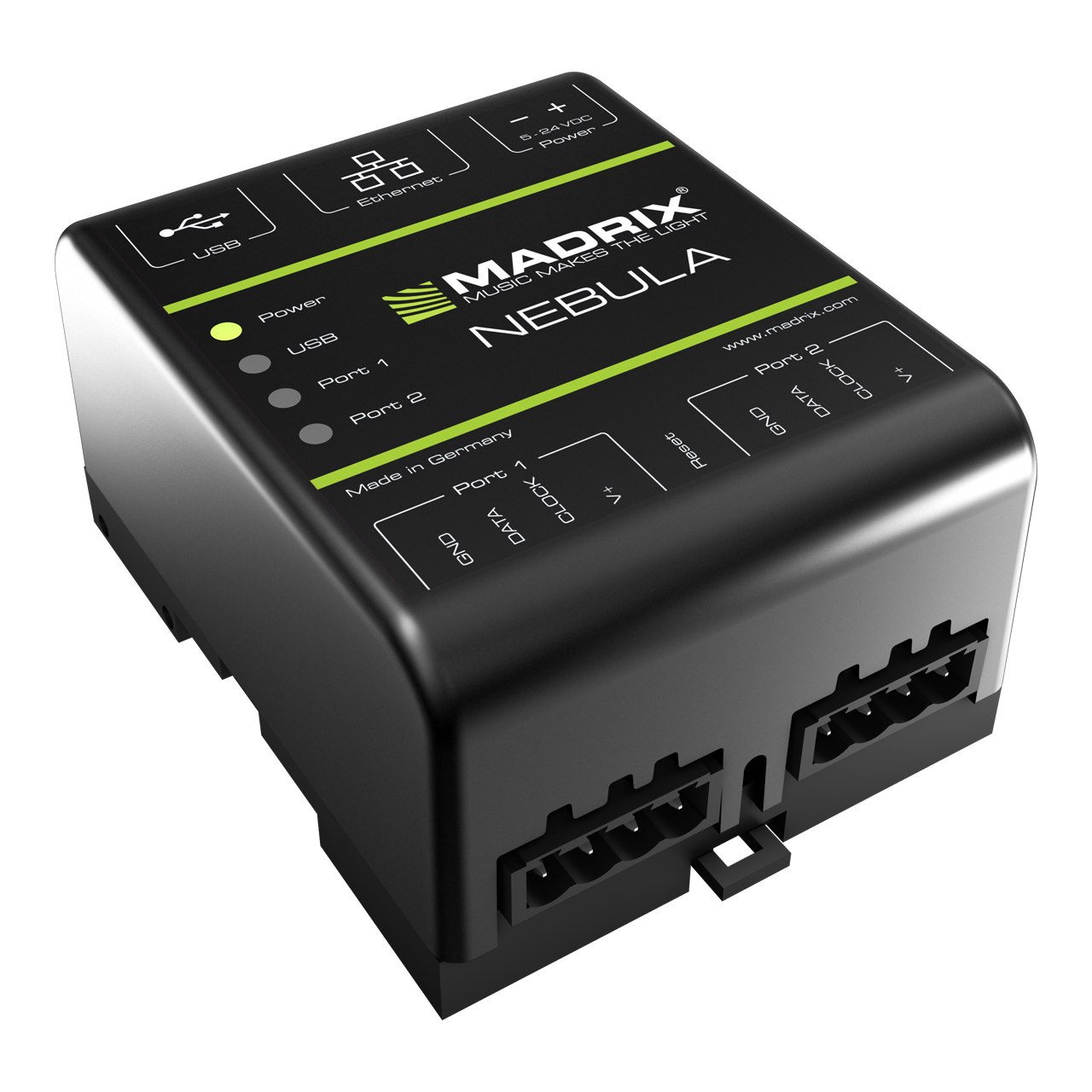

MADRIX NEBULA is a flexible LED pixel tape driver to directly control a wide range of digital LEDs.
Developed and made in Germany.
New Second Generation:
2 Ethernet Ports and Daisy-Chain Support!
New firmware 2.0: Streaming ACN, Channel Offset, Channel Order, Output In Case Of Connection Loss, and more!
The MADRIX NEBULA directly connects to your LED pixels. This advanced SPI decoder receives control data over Ethernet network or USB and is built to provide excellent image quality.
SPI Converter & Direct Connection

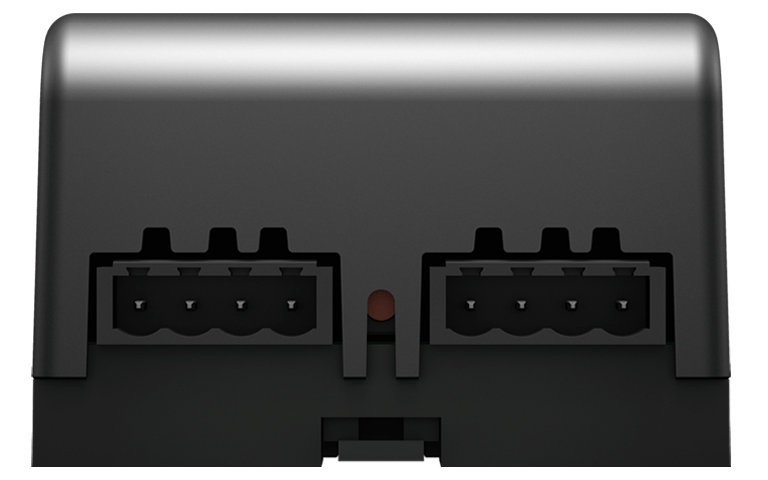

Directly connect to a wide range of supported LEDs via two 4-pin screw terminals. A signal frequency of up to 24 MHz is available. Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.
Quality Output Of 12 Universes
Each device drives up to 1,360 RGB pixels while ensuring the responsive delivery of high-quality signals to each individual LED. You can choose the output protocol separately for each of the two ports.
Art-Net / Streaming ACN / USB
Network data is directly converted to SPI without the need for an additional interface. Reliably distribute data from any compatible software or hardware controller. In addition, simply connect to MADRIX 5 over USB.
Sync Mode & Daisy-Chain Support
MADRIX 5 and MADRIX hardware allow you to fully synchronize Art-Net data for all ports and across devices to get an optimal image on the LEDs without visual interruptions. 2 Ethernet ports allow linearly daisy-chaining several devices together.

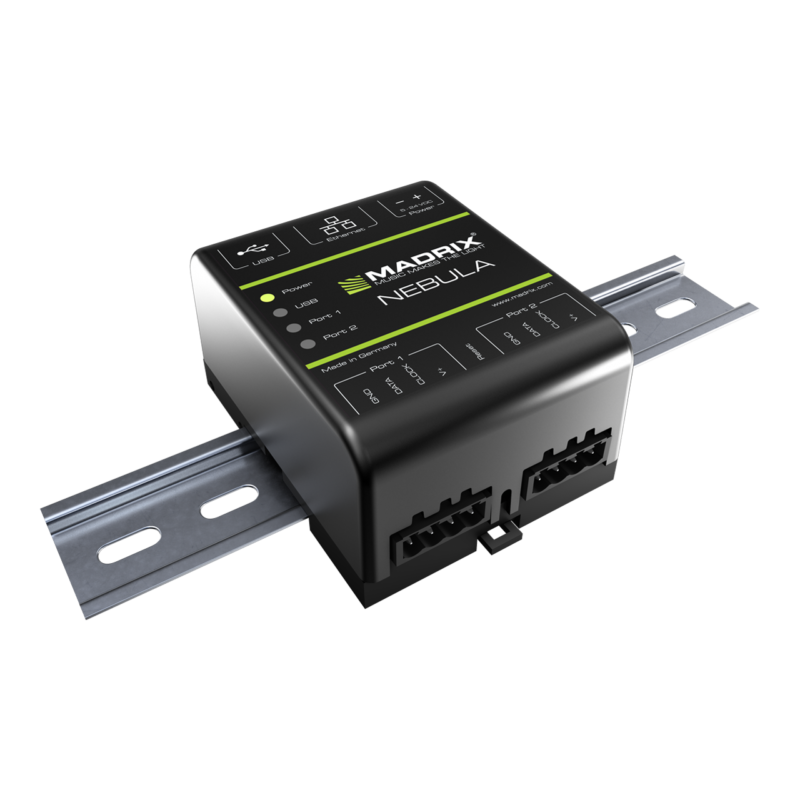

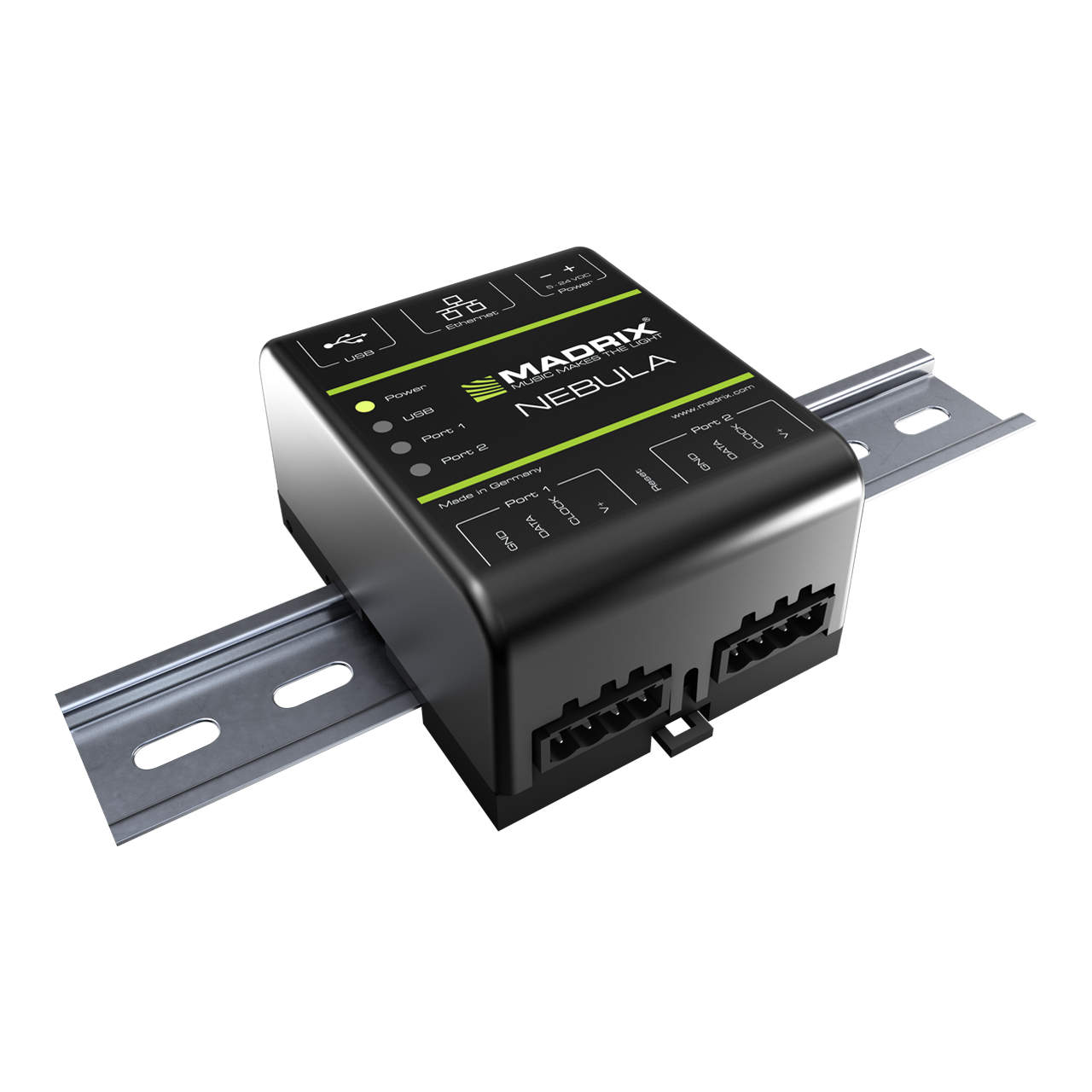

Designed For DIN Rails Or Walls
Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 9 indicators quickly show the device status with the option to turn them off.
Invaluable Features
The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware is upgradable. Access and change specific device settings using the built-in web configuration page.
Supported LEDs
APA101 / APA102 / APA104 / APA106 / GS8207 / GW6201 / GW6205 / LPD1882S / LPD6803 / LPD8806 / MBI6120 / P9883 / SJ1221 / SK6812 / SK6822 / SM16703 / SM16716 / TLS3001 / TLS3008 / TM1804 / TM1809 / TM1812 / TM1814 / TM1829 / UCS1903 / UCS2903 / UCS512B3 / UCS8904 / UCS9812S / WS2801 / WS2803 / WS2811 / WS2811S / WS2812 / WS2812B / WS2813 / WS2815 / WS2818 / WS2822S / WS2822S Addressing
As of March 2019. Additional LED types will be supported with future firmware updates.
Average Hardware Failure And Return Rate
(Last Update: April 2019)
0.18 %

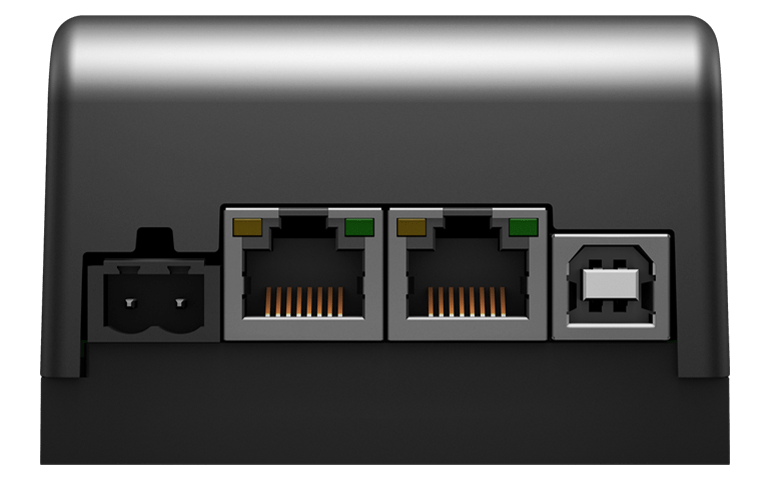

Connectivity
2x OUT (via pluggable screw terminals)
2x RJ45 Ethernet ports
1x USB port1x Power (via pluggable screw terminal)
Package Contents
MADRIX NEBULA
Set of screw terminals (2x 4-pin and 1x 2-pin)
USB 2.0 cable (certified)
2x Wall-mount brackets
Quick start guide / technical manual
