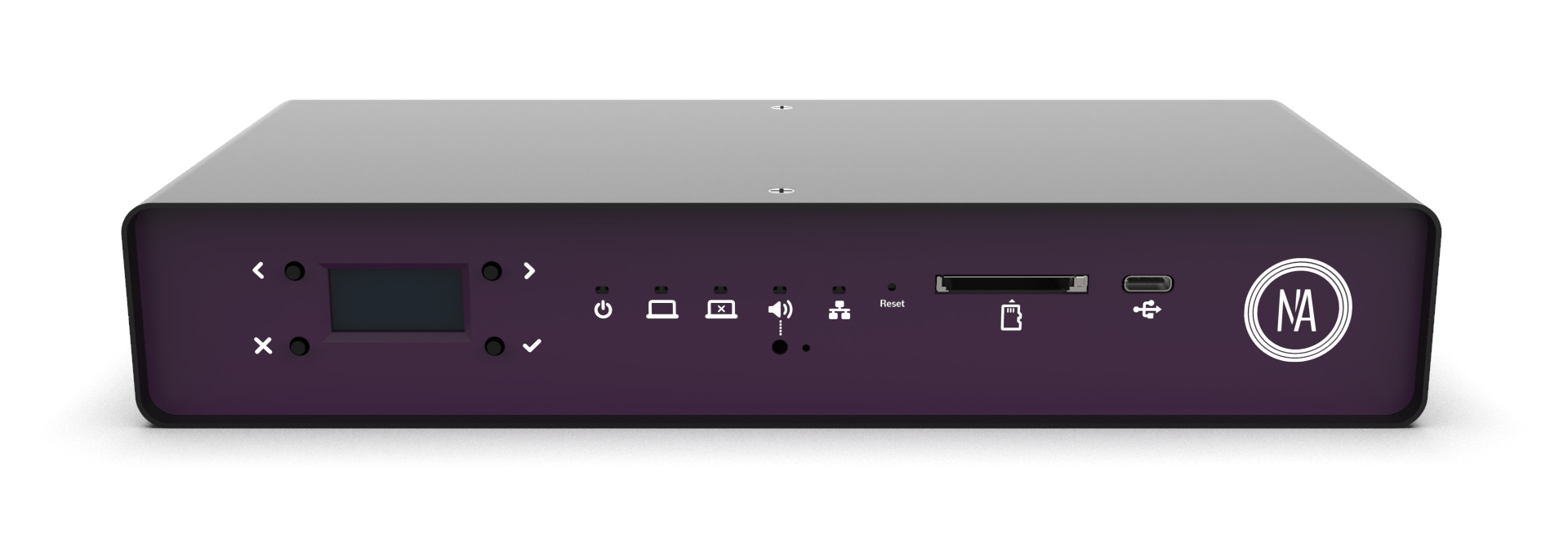

19-inch rack mounted lighting controller
Derived from the DINA-DR1, the DINA-SR1 offers the same possibilities in a different housing format. When the DR1 has been designed for DIN rail mounting the SR1 comes in a 19-inch rack format.
The perfect lighting control solution for integration with
AV and home automation installations
The DINA-SR1 offers the same features as the DINA-DR1 (3072 channels expandable to 6144 with eDMX, DALI, LED pixel, Audio, TCP, ports…) but with a strong metal housing.
This version has been specifically designed for 19-inch rack installations and can easily be integrated with other systems: AV, home automation…

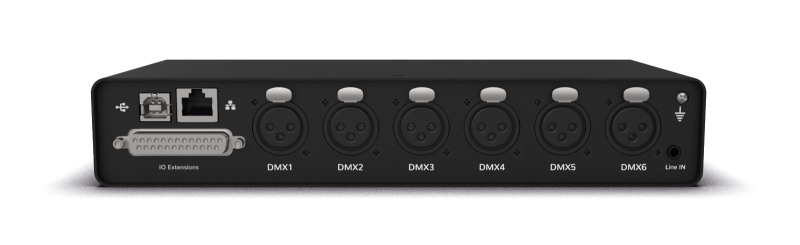

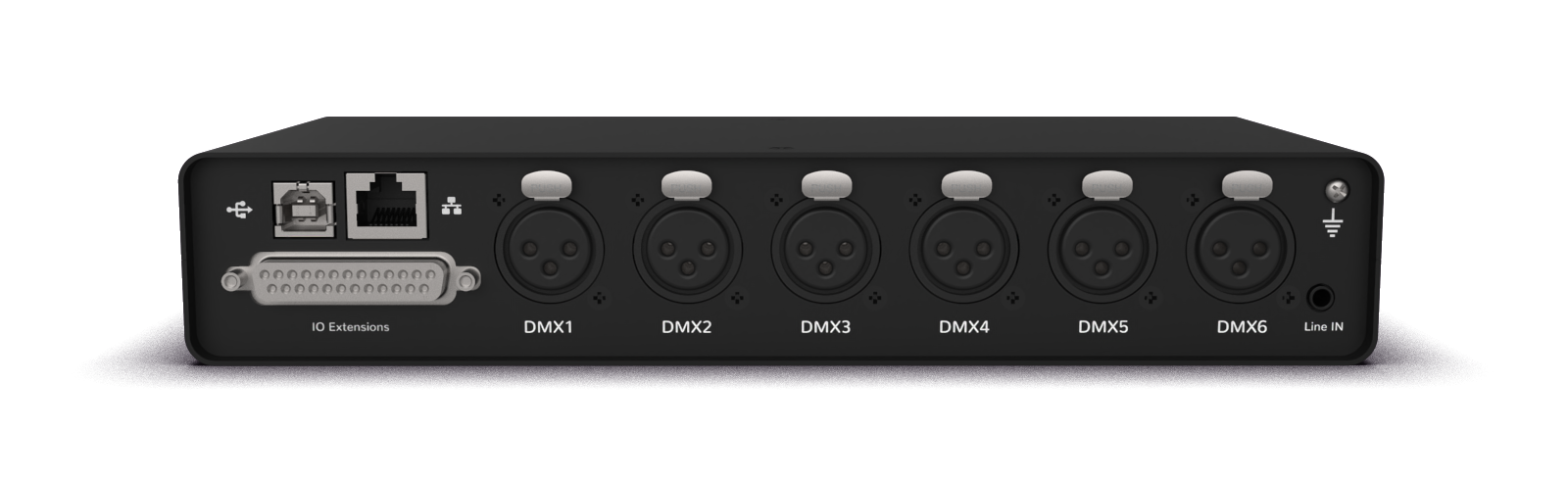

The use of standard connectors like XLR for DMX or mini-jack 3.5mm for Audio offers a perfect compatibility with AV installations.
Focus on main features
Programmable with ESA Pro 2
ESA Pro 2 is the latest generation of programming software. Available for Mac and Windows, this is the perfect complement to the DINA-DR1 controller: pixel mapping, triggering management, patch configuration, everything is available with a few mouse clicks. The only limit is your imagination.
New Stand Alone Engine
The new Nicolaudie Architectural engine (NSA) offers great possibilities for the control of your lighting installation: multi-zone, extended triggers, multiple output protocols, 16-bit channel management, full recovery after power loss, and more…
Some features may require future firmware updates, see the specifications for estimated availability
Extended triggering possibilities
Triggers are very important for lighting control. The DINA-SR1 offers multiple possibilities to trigger your lighting scenes: time/date, input ports, RS232, TCP/UDP commands, DALI…
In combination with ESA Pro 2 software the SR1 offers a lot more than just assigning a trigger to a scene. Each trigger is made of an event and conditions. The programmer can define a specific conditional procedure for each trigger to perfectly fit the most demanding lighting installations.
Some features may require future firmware updates, see the specifications for estimated availability
Multiple output protocols
A total of 3072 channels (1024 RGB or 768 RGBW devices) can be individually controlled by the DINA-SR1. If most of the installations will use the 6 DMX outputs, it is also possible to drive the 3072 channels over different protocols and connectors: eDMX (Art-Net, SACN) through the RJ45 connector or LED Pixel (2 output connections).
Some features may require future firmware updates, see the specifications for estimated availability
Scalable
Several DINA-SR1 lighting controllers can be linked together on a standard local network to extend the number of channels (e.g. 4 linked DINA-SR1 would make it possible to control 4×3072=12288 channels and so on…).
Some features may require future firmware updates, see the specifications for estimated availability
Compatible with LS Cloud
Nicolaudie Cloud is a secure web service offered by Nicolaudie Architectural to manage your lighting controller from anywhere in the world, at anytime. With this new service, you can modify the programming of an installed DINA-DR1 directly from your office, manage the hardware settings, update the product firmware…
DINA-SR1 technical specifications
| GENERAL | |
|---|---|
| Dimensions | 240 x 115 x 44 mm |
| Weight | 830g |
| USB connection | Yes |
| Ethernet connection | Yes |
| Output channels |
3072 (DMX, eDMX, LED pixel) expandable to 6144
|
| Scalable |
Coming soon
|
| RDM | Yes |
|
LED Pixel output
|
Coming soon
|
| eDMX | Yes |
| DALI |
Coming soon
|
|
Internal memory capacity
|
16 MB
|
|
Micro SD card
|
Yes |
|
Nicolaudie Cloud
|
Yes |
| STAND-ALONE | |
|
Number of scenes
|
2000 |
|
Number of zones
|
20 |
|
Power voltage
|
8-15V DC
|
|
Power connector
|
USB
|
| TRIGGERING | |
| Ports |
8
|
|
Clock/calendar triggers
|
Yes |
|
RS232
|
Yes |
|
Ethernet integration
|
Yes
|
|
AUDIO
|
Yes
|
|
DALI
|
Coming soon
|
|
Remote control apps
|
iOS/Android
|
| PROGRAMMING SOFTWARE/APP | |
|
ESA2
|
PC/Mac
|
|
ESA Pro 2
|
PC/Mac |
|
Arcolis
|
iOS/Android |
