Intuitive lighting control solution
The new SLESA-U11 is built on the latest generation of lighting controllers from Nicolaudie Architectural and combines all their recent innovations.
Programmable with ESA Pro 2 software or with Arcolis, the SLESA-U11 features the new Nicolaudie Stand Alone engine (NSA) offering some great possibilities (multi-zone, extended triggers, 16-bit channels management…) and an intuitive backlit keyboard with 10 presets.
Thanks to its Ethernet connection, the SLESA-U11 can be controlled from their Arcolis Remote Pro or Arcolis Remote applications.
99 SCENES
5 ZONES
1024+ DMX CH.
Main Features
Programmable with ESA Pro 2
ESA Pro 2 is the latest generation of programming software. Available for Mac and Windows, this is the perfect complement to the SLESA-U11 controller: pixel mapping, triggering management, patch configuration, everything is available with a few mouse clics. The only limit is your imagination.
New Stand Alone Engine
The new Nicolaudie Architectural engine (NSA) offers great possibilities for the control of your lighting installation: multi-zone, extended triggers, 16-bit channels management, full recovery after power lose, and more…
Extended triggering possibilities
Triggers are very important for lighting control. The SLESA-U11 offers multiple possibilities to trigger your lighting scenes: time/date, input ports, TCP/UDP commands.
In combination with ESA Pro 2 software the SLESA-U11 offers a lot more than just assigning a trigger to a scene. Each trigger is made of an event and conditions. The programmer can define a specific conditional procedure for each trigger to perfectly fit the most demanding lighting installations.

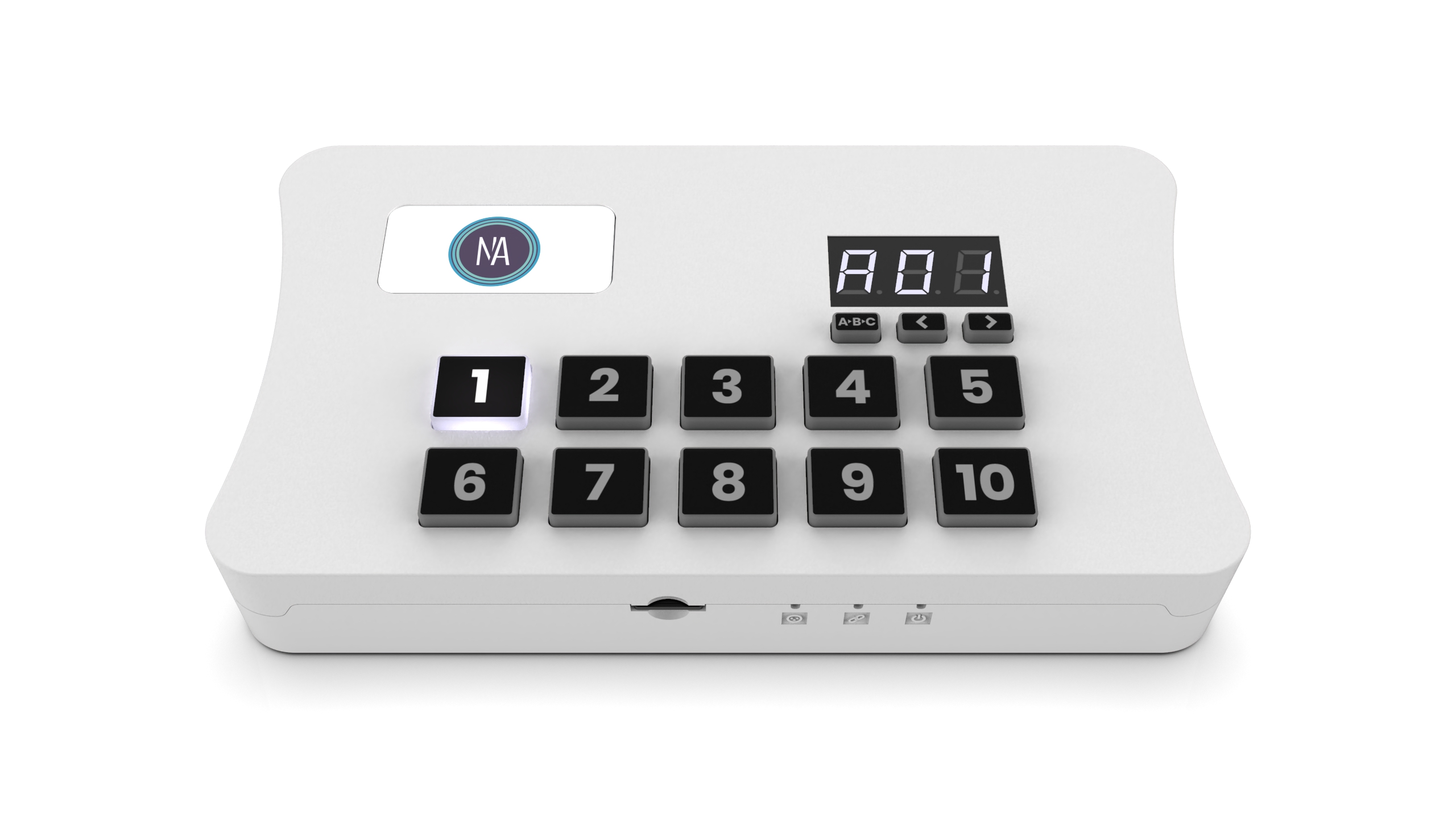

Intuitive backlit keyboard with 10 presets, Easy access to your scenes
Each of the 13 buttons on the SIUDI-11 have been placed for maximum ease of use. The ABC button allows you to cycle between each of the 5 zones. The arrow buttons allow you to cycle through your scenes (99 total). The first 10 scenes of each zone are backlit for a user friendly experience.
SLESA-U11 Technical Specifications
| GENERAL | |
|---|---|
| Dimensions |
160 x 90 x 45mm
|
| Weight |
268g
|
| USB connection | Yes |
|
Ethernet connection
|
Yes |
|
DMX channels
|
1024 (expendable to 2048)
|
|
RDM
|
Yes |
|
Memory capacity
|
USB Type-C
|
| STAND ALONE MODE | |
|
Number of scenes
|
99
|
|
Number of zones
|
5 |
|
Standalone memory
|
20k
|
|
Power voltage
|
5-5.5V DC
|
|
Power connector
|
USB Type-C
|
| TRIGGERING | |
|
Ports
|
16
|
|
Clock/calendar triggers
|
Yes |
|
Ethernet integration
|
Yes
|
|
Remote control apps
|
iOS/Android
|
| TRIGGERING | |
|
ESA2
|
PC/Mac
|
|
ESA Pro 2
|
PC/Mac
|
|
Arcolis
|
iOS/Android
|
