The genius of the STICK family
36 SCENES
1 ZONES
1024 DMX CH.
Features
Power
Turn on/off
Scene
Up to 36 scenes can be stored within the controller and directly recalled via 6 touch sensitive scene buttons
Central button
The central button functionality can be customized:
• Reset Color (default)
• Play next scene
• Select next bank (6 banks of 6 scenes)
• Select wheel scene mode
• No function
Saturation
Adjust the saturation
Dimmer
Make your lights brighter/darker
The first WIFI DMX lighting controller

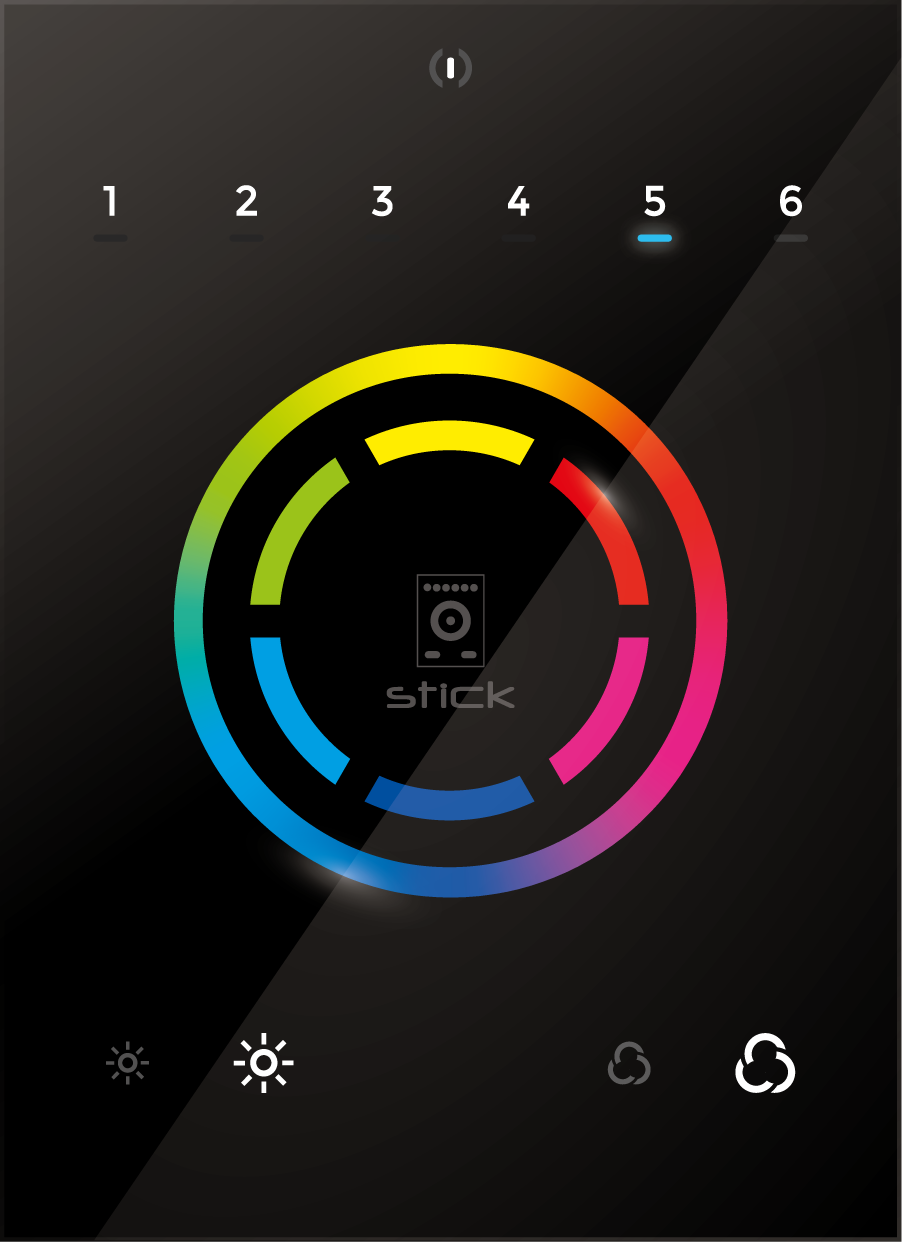

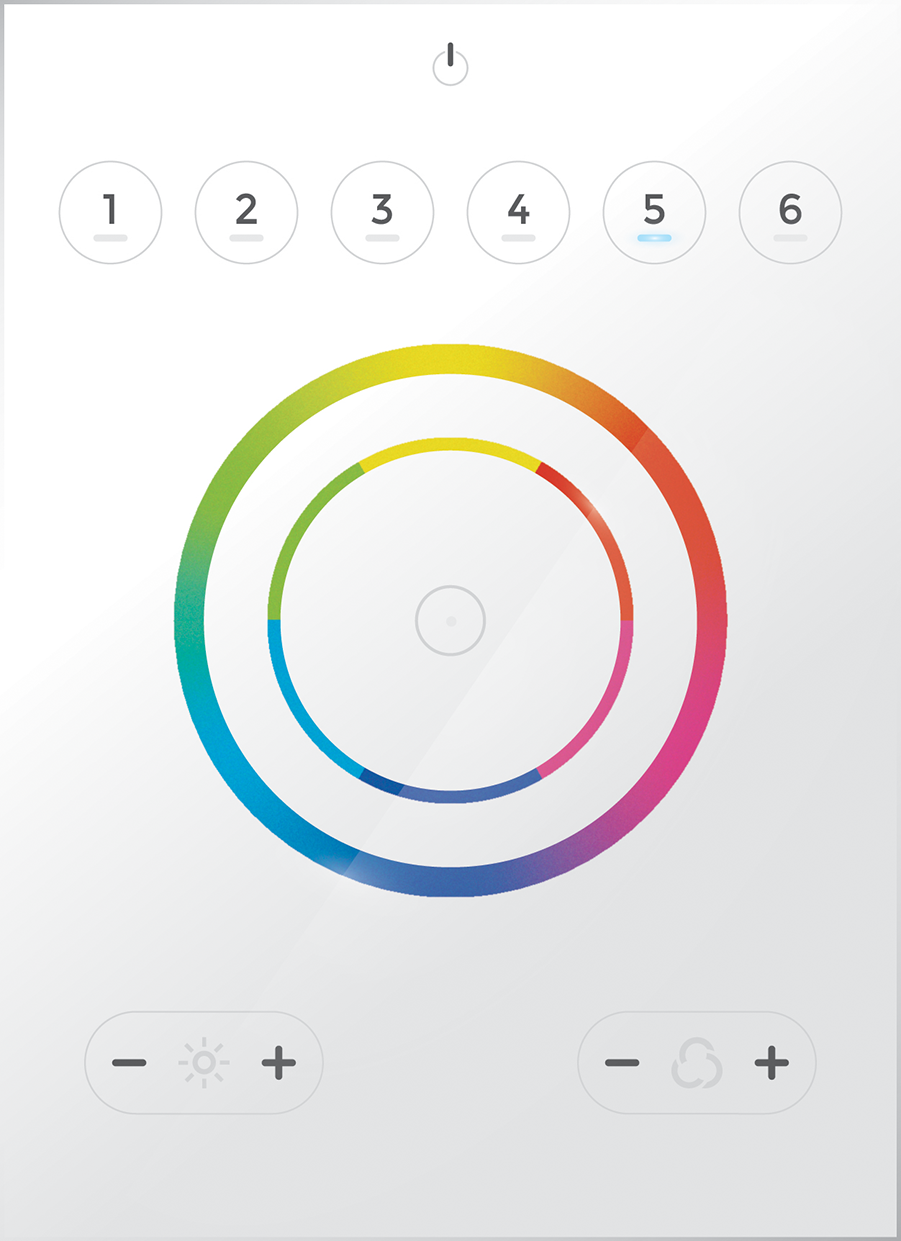

The STICK-CW4 programmable lighting controller, for RGB and RGBW lighting, has been designed around a touch sensitive color wheel.
The controller is USB or WiFi programmable from a PC or Mac using the ESA2 or ESA Pro 2 software. It is also possible to program it over WiFi using the on-site programming app Arcolis.
Up to 36 scenes can be stored within the controller and directly recalled via six touch sensitive scene buttons. A button located in the center of the color wheel can be used to jump between scenes or reset a color change.
- New glass design
- Color palette
- Touch sensitive buttons
- Touch sensitive wheel
- 36 scenes, 1 zone
- 1024 DMX channels
- USB & WIFI connectivity
- Clock and calendar
- OEM customization
- Windows/Mac software
- iPhone/iPad/Android
STICK-CW4 Technical Specifications
| GENERAL | |
|---|---|
| Dimensions |
106 x 146 x 10 mm
|
| Weight | 200g |
| USB connection | Yes |
| Ethernet connection | Yes |
| DMX Channels | 1024 |
| SOFTWARE | |
|
ESA2
|
PC / Mac
|
|
ESA Pro 2
|
PC / Mac
|
|
Remote control apps
|
Yes
|
| STAND ALONE | |
|
Number of scenes
|
36
|
|
Number of zones
|
1 |
|
Memory capacity (20 ch.)
|
2729 steps
|
|
Memory capacity (512 ch.)
|
124 steps
|
|
Power voltage
|
5-15V DC
|
|
Power connector
|
Screw terminal or RJ45
|
| TRIGGERING | |
|
Live control
|
Color / Dimmer / Speed
|
|
Touch sensitive buttons
|
12 + wheel
|
|
Port triggers
|
8 |
|
Clock/calendar triggers
|
100 |
|
WIFI integration
|
Yes |
| OPTIONS | |
|
AC/DC apapter
|
Ref. POWER4M
|
|
RJ45 to board block
|
Ref. RJ2BLOCK
|
