The return of a precursor
200 SCENES
5 ZONES
1024 DMX CH.
Features
Power
A LED is used to indicate whether the unit is on or off (Blackout)
Scene
Buttons 1-8 are used to select individual scenes. Scenes can be static or dynamic. Double tapping buttons 1-8 will reset the Dimmer, Speed, and Color to default
Select
The select button allows you to cycle through the Dimmer, Speed, and Color fader controls. The fader at the bottom of the unit is used to select the intensity of the Dimmer, Speed, and Color settings
Pages
Used to cycle between 25 different pages (A,B,C,D,E x 5). In combination with buttons 1-8, 200 different scenes can be stored
Fader
The colorized fader offers a direct access to basic colors with a simple touch
Central LED
The Green LED indicates that the Dimmer, Speed, and Color settings on the STICK are set to default. If the fader is moved to the right or left of the default (green), one of the 8 blue LEDs will indicate your current intensity level

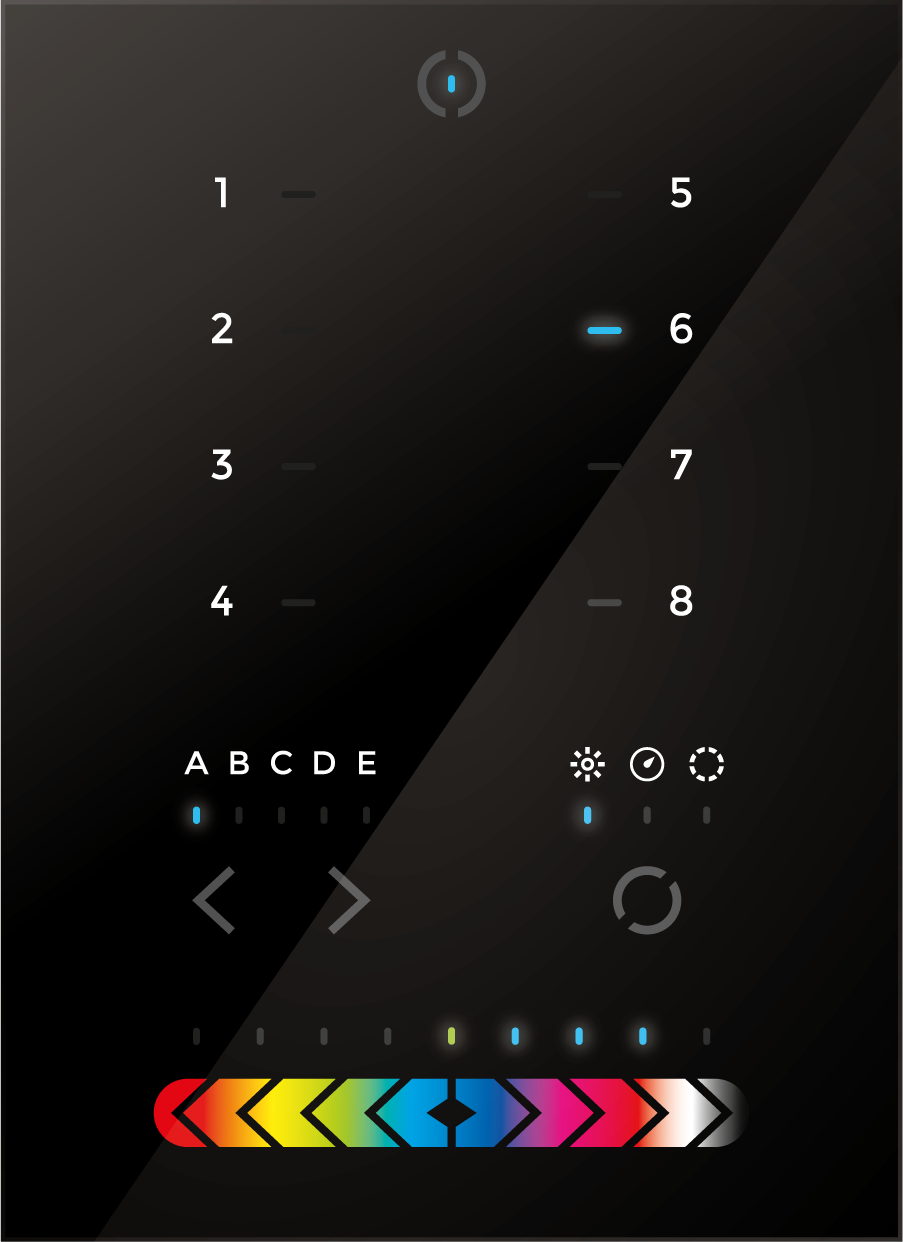

Lighting at the tip of your fingers
This truly simple controller features an on/off button at the top, 8 buttons to choose from up to 200 lighting scenes (25×8), 2 buttons to cycle between pages and a horizontal fader to instantly adjust dimmer, speed and color.
- New glass design
- Color/dimmer/speed fader
- Touch sensitive buttons
- Multi-zone microSD memory
- USB & Ethernet connectivity
- 200 scenes, 5 zones
- 1024 DMX channels
- RS232, ports, infra red
- Clock and calendar
- Catalog of designs
- OEM customization
- Windows/Mac software
- iPhone/iPad/Android
STICK-KE2 Technical Specifications
| GENERAL | |
|---|---|
| Dimensions |
106 x 146 x 10mm
|
| Weight | 200g |
| USB connection | Yes |
| Ethernet connection | Yes |
| DMX Channels | 1024 |
| Micro SD card | Yes |
| SOFTWARE | |
|
ESA2
|
PC / Mac
|
|
ESA Pro
|
PC |
|
ESA Pro 2
|
PC / Mac
|
|
Remote control apps
|
Yes
|
| STAND ALONE | |
|
Number of scenes
|
200
|
|
Number of zones
|
5 |
|
Memory capacity
|
SD card limit
|
|
Power voltage
|
6-9V DC
|
|
Power connector
|
Screw terminal or RJ45
|
| TRIGGERING | |
|
Live control
|
Color / Dimmer / Speed
|
|
Touch sensitive buttons
|
12 + wheel
|
|
Port triggers
|
8 |
|
Ethernet integration
|
Yes |
|
RS232
|
Yes |
|
Clock/calendar triggers
|
40 / astronomical
|
| OPTIONS | |
|
AC/DC apapter
|
Ref. POWER4M
|
|
RJ45 to board block
|
Ref. RJ2BLOCK
|
